The CB Radios / The AM/FM transceivers / JOHNSON II 12/24V ASC
0 vote - 0 comment -
Multi-normes européennes An optimal and reliable performance of your president  cb radio will be reached only if the device is used with a real president antenna. Upon presentation of the original invoice of the antenna you will be given 3 additional years warranty on the cb radio (2+3), that is 5 year warranty. ASC RoHS - What is it?
Compatible LIBERTY-MIC

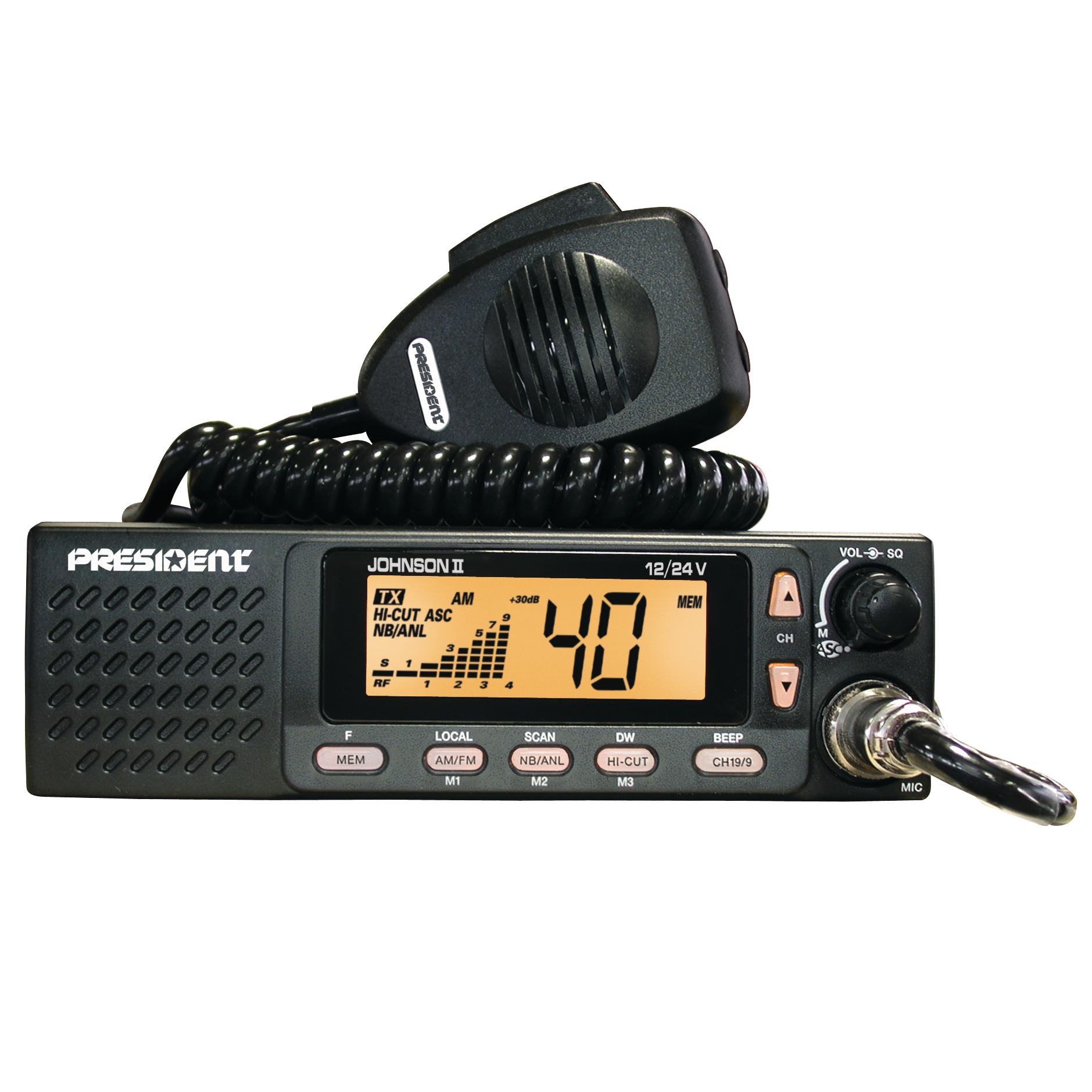

JOHNSON II 12/24V ASC
- 40 channels AM / FM
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- ANL filter , NB and HI-CUT
- Local DX key
- Channels and memories scan
- 3 Memories
- F function key
- Beep Function
- Mode switch AM / FM
- Dual watch
- Preset 9/19
- Front microphone plug
- External loudspeaker jack
- Front loudspeaker
Back light color:

Dimensions H x W x D (in mm) : 52 x 170 x 150
Weight : 1.0 kg
Included accessories :
  • power cord with fuse
  • 1 microphone and its hanger
  • 1 mounting bracket with fixing screws
  •

    Antennas recommended for this transceiver

    ALABAMA
    ARAVALI
    COLORADO 1800 Power
    DAKOTA
    DAKOTA UP
    GAMMA 90
    HIMALAYA
    HIMALAYA WB
    MARYLAND
    ML-145
    ML-145 UP
    MS-145 CN
    SUPER FLORIDA
    TEXAS 1800 Power
    WA-27
    WYOMING UP
    ALASKA
    FLORIDA
    FLORIDA UP
    GEORGIA
    HAWAI
    IOWA
    KENTUCKY
    MICHIGAN A
    MISSISSIPPI
    MISSOURI
    MISSOURI UP
    MONTANA
    MONTANA UP
    NEW YORK
    OHIO
    OREGON
    VIRGINIA
    WASHINGTON
    CAROLINA
    INDIANA
    VERMONT
    3 Excellent     2 Very good      1 Correct     0 Not recommended
    Main rule for best antenna performance:
    "More the antenna is long, better are the performances."
    Please consult your dealer for advice.

    Options

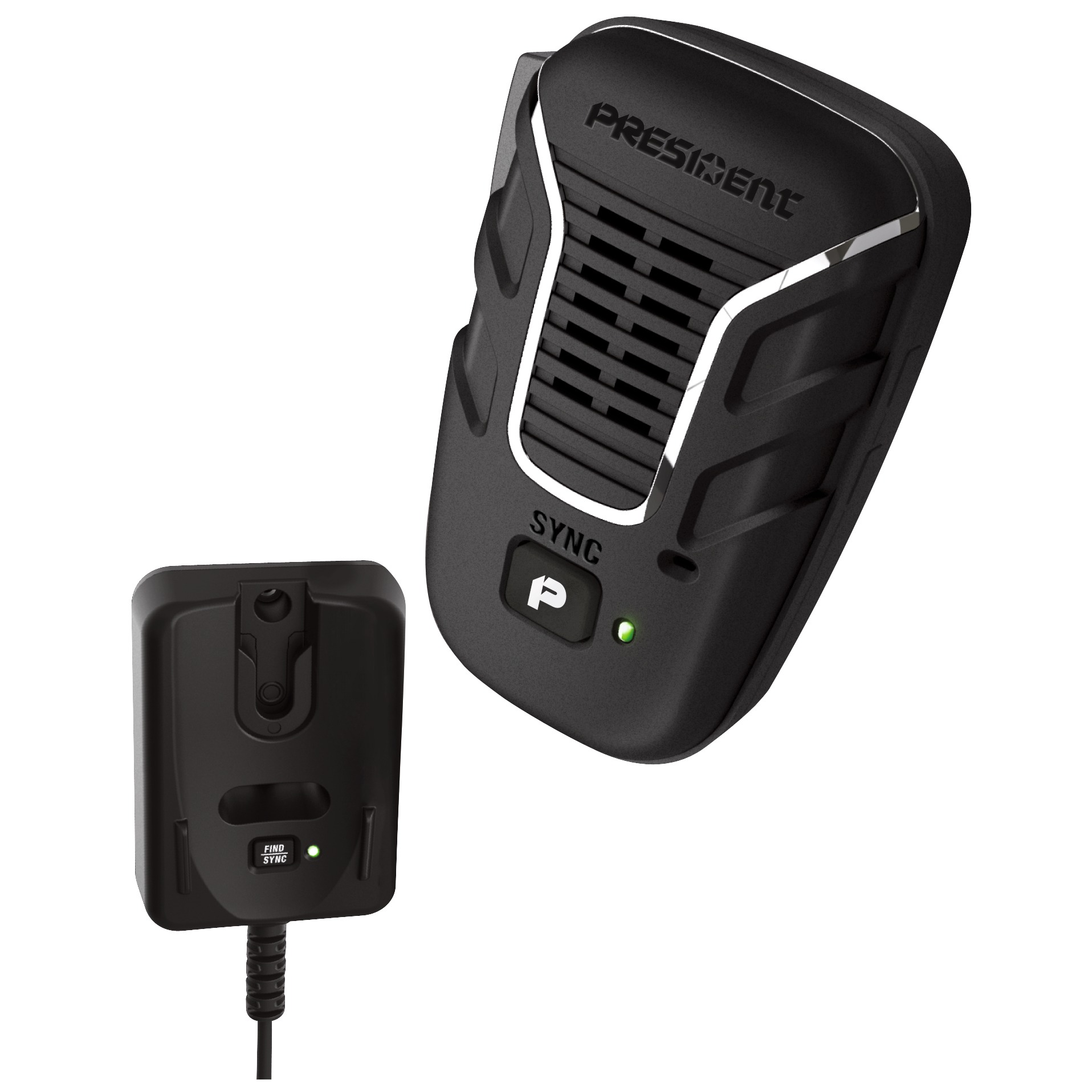

    LIBERTY-MIC (WIRELESS MICROPHONE)
    (TXMU000)

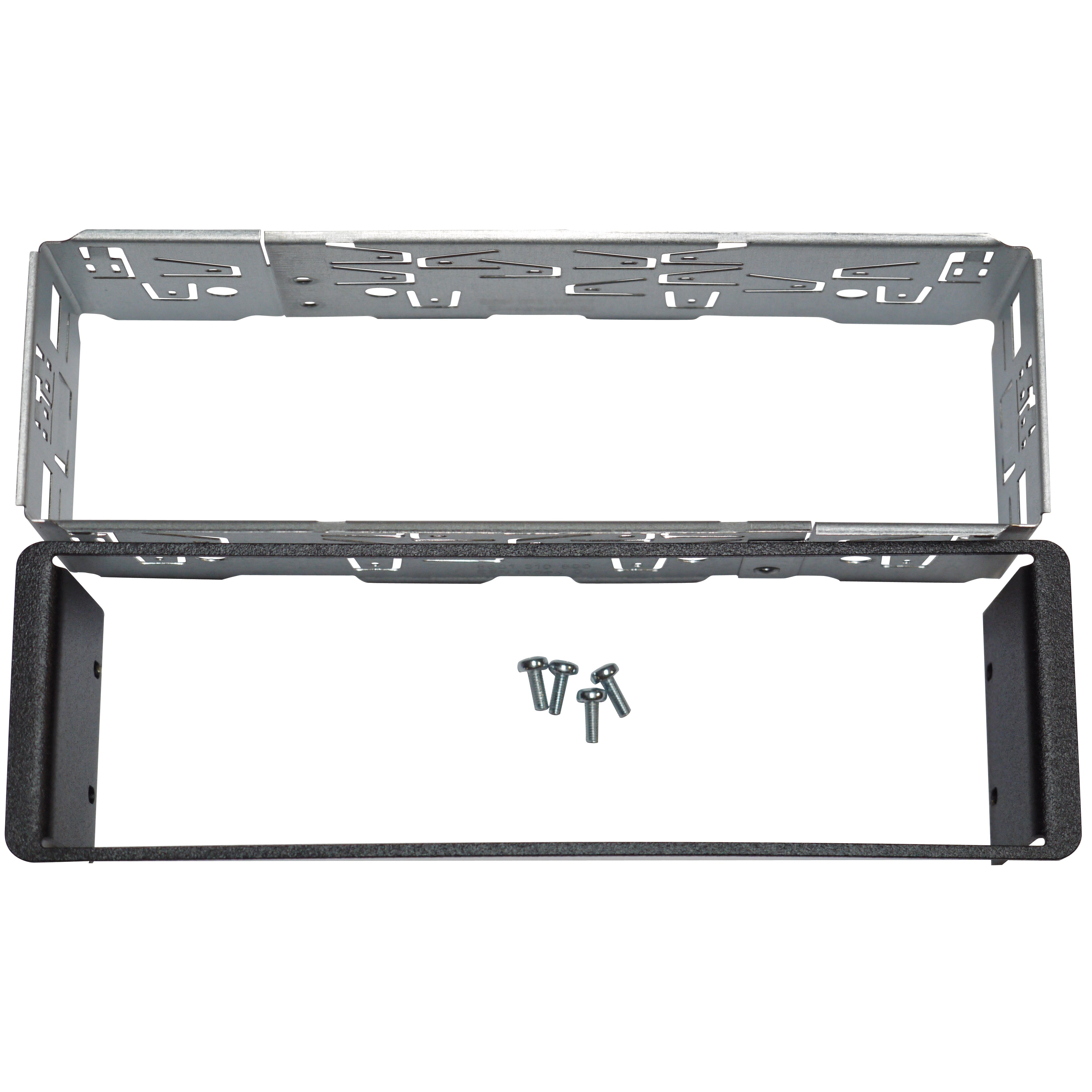

    Racks
    (ACST567)

    Racks
    (ACPB102)

    Micro DNC-520
    (ACFD521)

    Micro DNC-520 UP/DOWN
    (ACFD520)

    Description

    Display TX SCAN AM FM HICUT ASC DW NBANL UK LOCAL SRF SRF CANAL EMG MEM F BANDE

    Technical characteristics

    - General
    Channels:40
    Modulation modes:AM / FM
    Frequency ranges:from 26.965 MHz to 27.405 MHz
    Antenna impedance:50 ohms
    Power supply:13.2 V
    Dimensions H x W x D (in mm):52 x 170 x 150
    Weight:1.0 kg
    Accessories supplied:power cord with fuse
    1 microphone and its hanger
    1 mounting bracket with fixing screws
    - Transmission
    Frequency allowance:+/- 300 Hz
    Carrier power:1 W AM / 4 W FM
    Transmission interference:inferior to 4 nW (- 54 dBm)
    Audio response:300 Hz to 3 kHz in AM/FM
    Emitted power in the adj. channel:inferior to 20 µW
    Microphone sensitivity:3 mV
    Drain:2 A (with modulation)
    Modulated signal distortion:2 %
    - Reception
    Maxi. sensitivity at 20 dB sinad: 0,5 μV - 113 dBm (AM/FM)
    Frequency response:300 Hz to 3 kHz in AM/FM
    Adjacent channel selectivity:60 dB
    Maximum audio power:3 W
    Squelch sensitivity:mini 0.2 μV - 120 dBm
    maxi 1 mV - 47 dBm
    Frequency image rejection rate:60 dB
    Intermediate frequency rej. rate:70 dB
    Drain:400 mA nominal / 1000 mA max

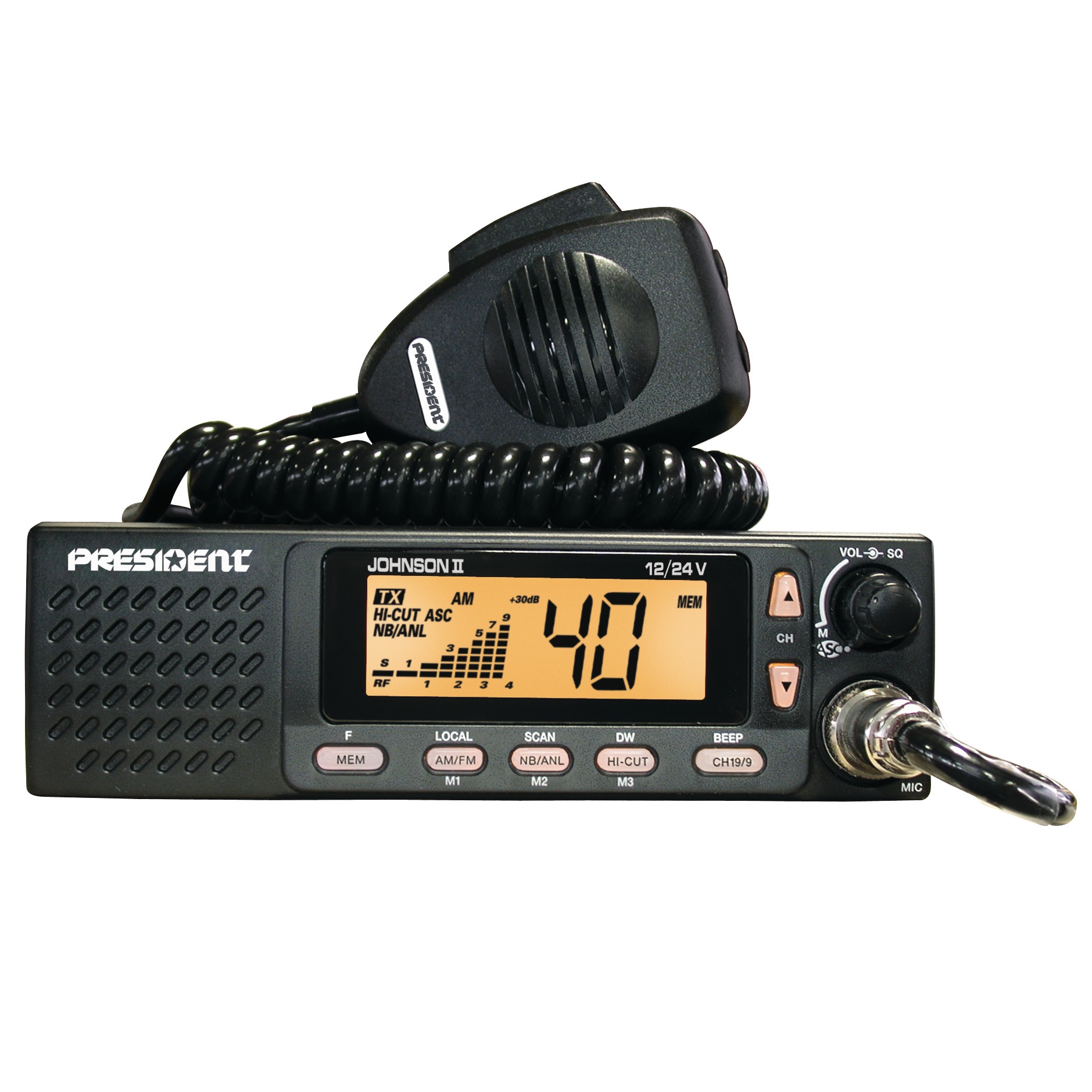

    Photos


    1879px x 1879px
    338.05 KB

    3805px x 3805px
    659.12 KB

    1916px x 1916px
    261.37 KB
