| Channels | : | 40 |
| Modulation modes | : | AM / FM |
| Frequency ranges | : | from 26.965 MHz to 27.405 MHz |
| Antenna impedance | : | 50 ohms |
| Power supply | : | 13.2 V |
| Dimensions H x W x D (in mm) | : | 51 x 180 x 188 |
| Weight | : | 1.5 kg |

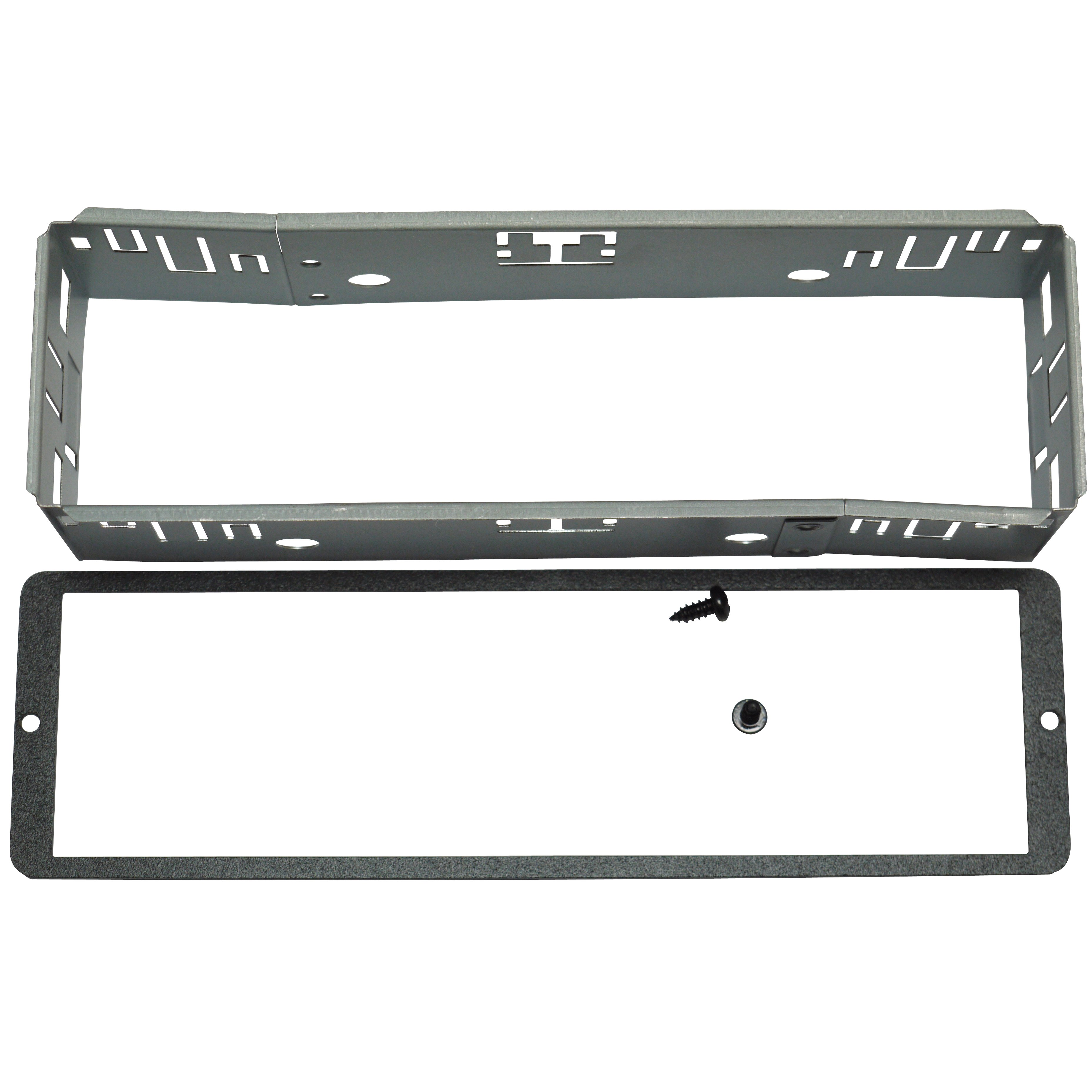

| Accessories supplied | : | power cord with fuse 1 microphone and its hanger 1 mounting bracket with fixing screws |
| Frequency allowance | : | +/- 300 Hz |
| Carrier power | : | 1 W AM / 4 W FM |
| Transmission interference | : | inferior to 4 nW (- 54 dBm) |
| Audio response | : | 300 Hz to 3 kHz in AM/FM/USB/LSB |
| Emitted power in the adj. channel | : | inferior to 20 µW |
| Microphone sensitivity | : | 3 mV |
| Drain | : | 3 A (with modulation) |
| Modulated signal distortion | : | 2 % |
| Maxi. sensitivity at 20 dB sinad | : | 0,7 μV -110 dBm (AM) 0,35 μV -116 dBm (FM) |
| Frequency response | : | 300 Hz to 3 kHz in AM/FM |
| Adjacent channel selectivity | : | 60 dB |
| Maximum audio power | : | 2 W |
| Squelch sensitivity | : | mini 0.2 μV - 120 dBm maxi 1 mV - 47 dBm |
| Frequency image rejection rate | : | 60 dB |
| Intermediate frequency rej. rate | : | 70 dB |
| Drain | : | 0,4 A nominal / 1,5 A max |
