The CB Radios / The AM/FM transceivers / WALKER ASC Classic
1 vote - 0 comment -
Multi-normes européennes An optimal and reliable performance of your president  cb radio will be reached only if the device is used with a real president antenna. Upon presentation of the original invoice of the antenna you will be given 3 additional years warranty on the cb radio (2+3), that is 5 year warranty. ASC RoHS - What is it? 3D
Compatible LIBERTY-MIC

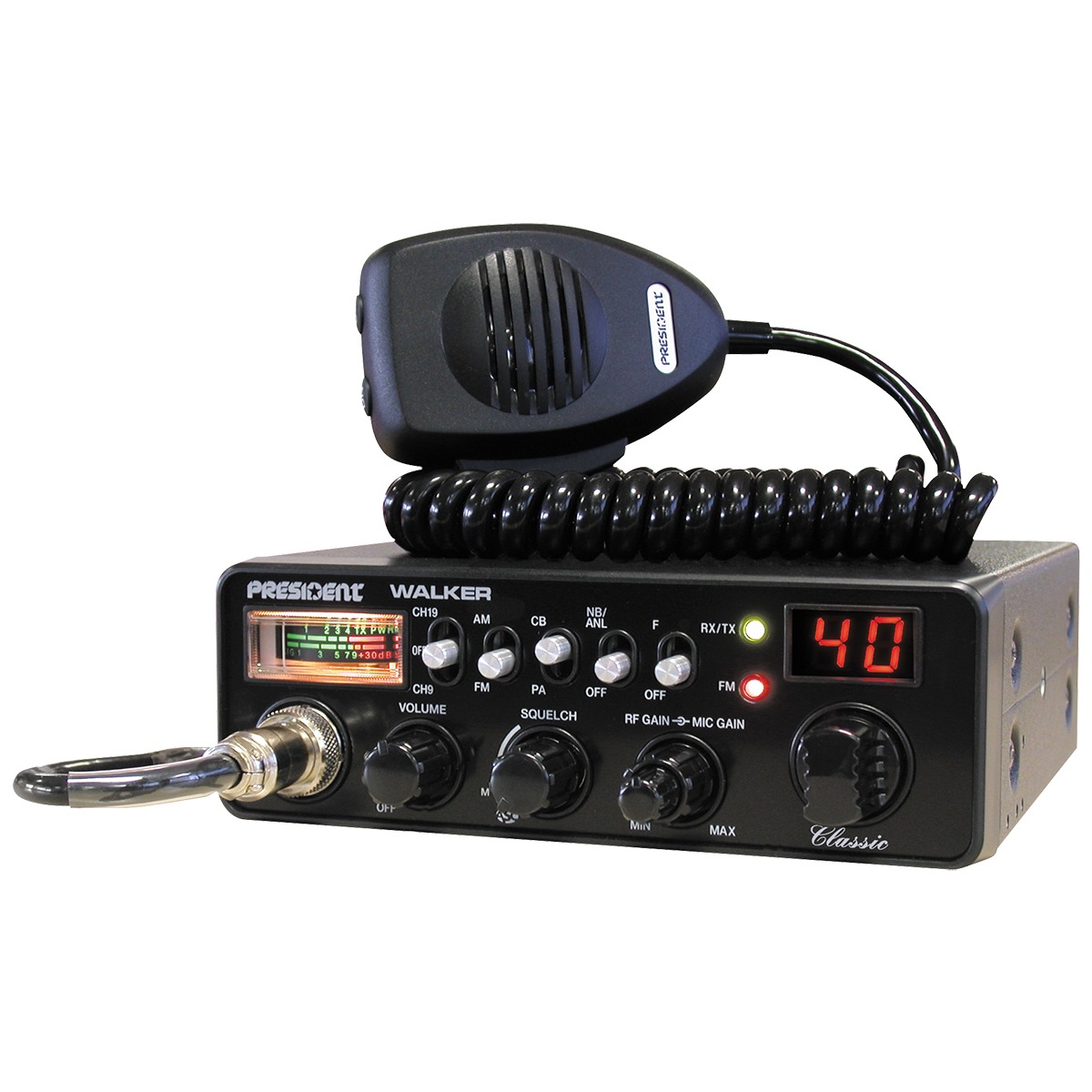

WALKER ASC Classic
- 40 channels AM / FM
- Channel rotary switch
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Digital channel display
- S/RF vu-meter
- Public Address
- ANL filter , NB
- RF Gain / Mike gain
- F function key
- Mode switch AM / FM
- Preset 9/19
- Front microphone plug
- External loudspeaker jack

Dimensions H x W x D (in mm) : 55 x 160 x 160
Weight : 1.1 kg
Included accessories :
  • power cord with fuse
  • 1 microphone and its hanger
  • 1 mounting bracket with fixing screws
  •

    Antennas recommended for this transceiver

    ALABAMA
    ARAVALI
    COLORADO 1800 Power
    DAKOTA
    DAKOTA UP
    GAMMA 90
    HIMALAYA
    HIMALAYA WB
    MARYLAND
    ML-145
    ML-145 UP
    MS-145 CN
    SUPER FLORIDA
    TEXAS 1800 Power
    WA-27
    WYOMING UP
    ALASKA
    FLORIDA
    FLORIDA UP
    GEORGIA
    HAWAI
    IOWA
    KENTUCKY
    MICHIGAN A
    MISSISSIPPI
    MISSOURI
    MISSOURI UP
    MONTANA
    MONTANA UP
    NEW YORK
    OHIO
    OREGON
    VIRGINIA
    WASHINGTON
    CAROLINA
    INDIANA
    VERMONT
    3 Excellent     2 Very good      1 Correct     0 Not recommended
    Main rule for best antenna performance:
    "More the antenna is long, better are the performances."
    Please consult your dealer for advice.

    Options


    LIBERTY-MIC (WIRELESS MICROPHONE)
    (TXMU000)

    Micro DNC-520
    (ACFD521)

    Micro DNC-520 UP/DOWN
    (ACFD520)

    Description

    Technical characteristics

    - General
    Channels:40
    Modulation modes:AM / FM
    Frequency ranges:from 26.965 MHz to 27.405 MHz
    Antenna impedance:50 ohms
    Power supply:13.2 V
    Dimensions H x W x D (in mm):55 x 160 x 160
    Weight:1.1 kg
    Accessories supplied:power cord with fuse
    1 microphone and its hanger
    1 mounting bracket with fixing screws
    - Transmission
    Frequency allowance:+/- 300 Hz
    Carrier power:1 W AM / 4 W FM
    Transmission interference:inferior to 4 nW (- 54 dBm)
    Audio response:300 Hz to 3 kHz in AM/FM
    Emitted power in the adj. channel:inferior to 20 µW
    Microphone sensitivity:3 mV
    Drain:2 A (with modulation)
    Modulated signal distortion:2 %
    - Reception
    Maxi. sensitivity at 20 dB sinad: 0,5 μV - 113 dBm (AM/FM)
    Frequency response:300 Hz to 3 kHz in AM/FM
    Adjacent channel selectivity:60 dB
    Maximum audio power:5 W
    Squelch sensitivity:mini 0.2 μV - 120 dBm
    maxi 1 mV - 47 dBm
    Frequency image rejection rate:60 dB
    Intermediate frequency rej. rate:70 dB
    Drain:400 mA nominal / 1500 mA max
