MICRO WIRING PLUG

For the CB radio model -pin wiring

COMPACT 4-PIN

Micro electret :
JIMMY, JOHNNY

N°	Cables
1	GROUND
2	MODULATION
3	TX
4	RX

pin side view

COMPACT. 6-PIN

↑ TOP

Micro electret :
JIMMY, JOHNNY, HARRY

N°	Cables
1	MODULATION
2	RX
3	TX
4	NC^*
5	GROUND
6	NC^*
^*NC : not connected

pin side view

ATTENTION : Unit side position, the pin #6 is supplied with 13.2V, do not replace a dynamic microphone with an electret and vice versa.

CONNECTOR RJ11 4-PIN

↑ TOP

Micro electret :
BILLY

N°	Cables
1	GROUND
2	MODULATION
3	TX
4	RX

DIN 5-PIN

↑ TOP

HARRY, TAYLOR,

Previous generation

N°	Cables
1	MODULATION
2	TX
3	GROUND
4	NC^*
5	RX
^*NC : not connected

pin side view

HARRISON 6-PIN

↑ TOP

Micro electret :
HARRISON

N°	Cables
1	MODULATION
2	RX
3	TX
4	FUNCTION
5	GROUND
6	ALIMENTATION

pin side view

KENJI 6-PIN

↑ TOP

Micro electret :
KENJI

N°	Cables
1	MODULATION
2	RX
3	TX
4	NC^*
5	GROUND
6	ALIMENTATION
^*NC : not connected

pin side view

NC 514 4-PIN

↑ TOP

Micro dynamic :
FRANCOIS, VALERY, WILSON, HERBERT, JFK, SS 120, JACK, GRANT, JACKSON, RONALD, FRANKLIN, SS 360, BENJAMIN,

Previous generation

N°	Cables
1	GROUND
2	MODULATION
3	TX
4	RX

pin side view

ATTENTION : Do not substitute a dynamic microphone with an electret and vice versa

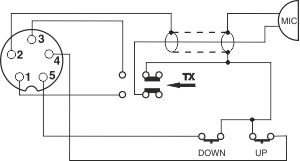

NC 516 6-PIN

↑ TOP

LINCOLN, SHÕGUN

N°	Cables
1	MODULATION
2	GROUND
3	TX
4	UP
5	DOWN

pin side view

NC 518 6-PIN

↑ TOP

Micro dynamic :
TAYLOR, VALERY, WILSON, HERBERT, ROBERT, JFK, GRANT, RICHARD, JACKSON, MC 6700

N°	Cables
1	MODULATION
2	RX
3	TX
4	NC^*
5	GROUND
6	NC^*
^*NC : not connected

pin side view

ATTENTION : Unit side position, the pin #6 is supplied with 13.2V, do not replace a dynamic microphone with an electret and vice versa.

NC 518 U/D 6-PIN

↑ TOP

JOHNSON, JAMES, GEORGE, HERBERT, NEW TAYLOR

N°	Cables
1	MODULATION
2	RX
3	TX
4	UP/DOWN
5	GROUND
6	ALIMENTATION

pin side view

NC 520 6-PIN

↑ TOP

Micro electret :
TEDDY, TOMMY, JOHNNY II, JOHNNY III, HARRY II, HARRY III, TRUMAN, TAYLOR II, TAYLOR III, WALKER, JOHNSON II, JFK II, JACKSON II

N°	Cables
1	MODULATION
2	RX
3	TX
4	NC^*
5	GROUND
6	ALIMENTATION
^*NC : not connected

pin side view

ATTENTION : Unit side position, pin #6 is supplied with 13.2V

NC 520 U/D 6-PIN

↑ TOP

Micro electret :
JOHNNY II, HARRY II CLASSIC, HARRY II, TAYLOR II CLASSIC, TAYLOR III, WALKER, JOHNSON II, JACKSON II, JFK II, GRANT II

N°	Cables
1	MODULATION
2	RX
3	TX - UP/DOWN
4	NC^*
5	GROUND
6	ALIMENTATION
^*NC : not connected

pin side view

NINJA 6-PIN

↑ TOP

Micro electret :
NINJA

N°	Cables
1	MODULATION
2	RX
3	TX
4	UP/DOWN
5	GROUND
6	NC^*
^*NC : not connected

pin side view

SAMURAI 6-PIN

↑ TOP

SAMURAÏ

N°	Cables
1	MODULATION
2	GROUND
3	TX
4	UP
5	DOWN
6	RX

pin side view

ATTENTION : unsupported pinout with the NC 518 6-pin PRESIDENT

THOMAS ASC 8-PIN

↑ TOP

Micro electret :
THOMAS ASC

N°	Cables
1	SHIELD
2	YELLOW
3	NC^*
4	NC^*
5	NC^*
6	BLACK
7	NC^*
8	RED
^*NC : not connected
