The CB Radios / The AM/FM/SSB transceivers / JACKSON II ASC Classic
2 votes - 0 comment -
Multi-normes européennes An optimal and reliable performance of your president  cb radio will be reached only if the device is used with a real president antenna. Upon presentation of the original invoice of the antenna you will be given 3 additional years warranty on the cb radio (2+3), that is 5 year warranty. ASC RoHS - What is it?
Compatible LIBERTY-MIC

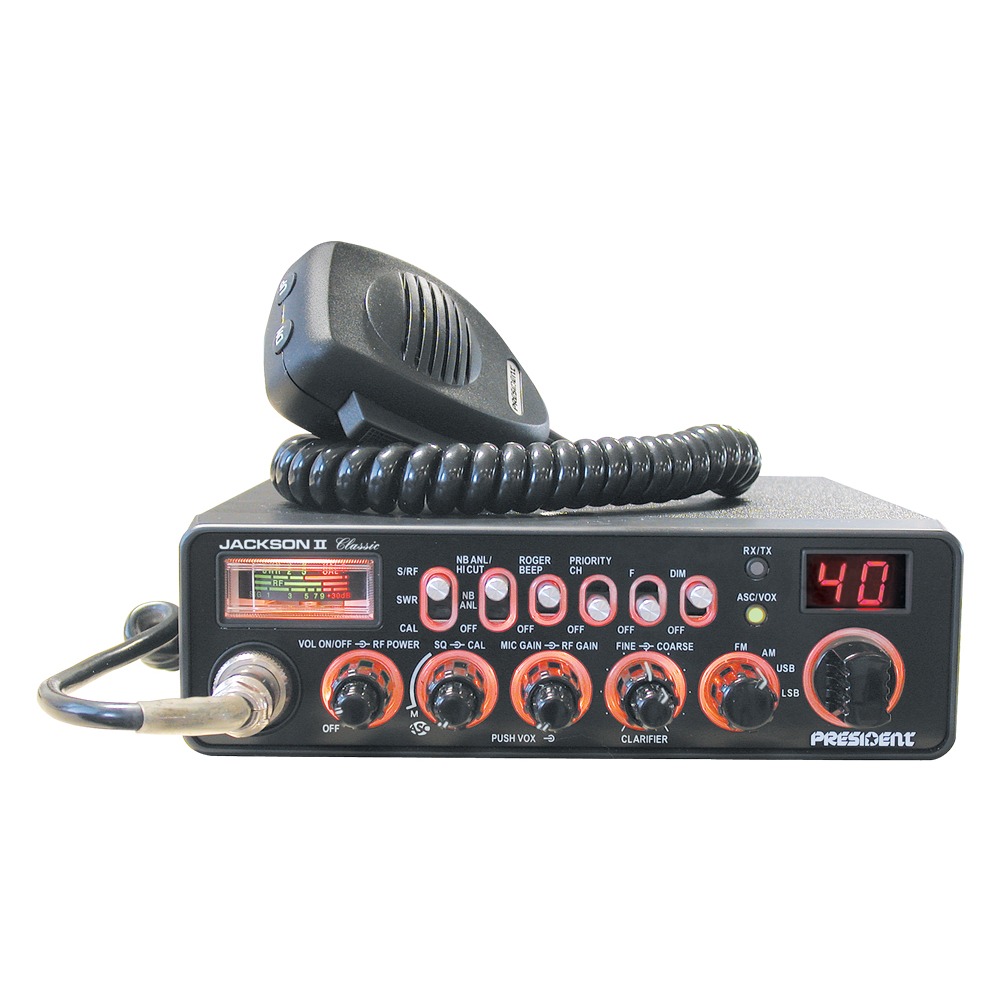

JACKSON II ASC Classic
- 40 channels AM / FM / LSB / USB
- Channel rotary switch
- Volume adjustment and ON/OFF
- RF Power
- Manual squelch and ASC
- Digital channel display
- S/RF vu-meter
- Vox function (Hands free)
- ANL filter , NB and HI-CUT
- RF Gain / Mike gain
- Clarifier
- Scan
- Dim
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM / LSB / USB
- SWR (Power Reading /SWR)
- Preset 9
- Front microphone plug
- External loudspeaker jack
Back light color:

Dimensions H x W x D (in mm) : 56 x 185 x 264.5
Weight : 1.5 kg
Included accessories :
  • power cord with fuse
  • 1 microphone and its hanger
  • 1 mounting bracket with fixing screws
  •

    Antennas recommended for this transceiver

    ALABAMA
    COLORADO 1800 Power
    DAKOTA
    DAKOTA UP
    GAMMA 90
    HIMALAYA
    HIMALAYA WB
    MARYLAND
    ML-145
    ML-145 UP
    MS-145 CN
    TEXAS 1800 Power
    WA-27
    ALASKA
    HAWAI
    IOWA
    KENTUCKY
    MICHIGAN A
    MISSISSIPPI
    MISSOURI
    MISSOURI UP
    MONTANA
    MONTANA UP
    OHIO
    OREGON
    SUPER FLORIDA
    WASHINGTON
    WYOMING UP
    ARAVALI
    INDIANA
    CAROLINA
    FLORIDA
    FLORIDA UP
    GEORGIA
    NEW YORK
    VERMONT
    VIRGINIA
    3 Excellent     2 Very good      1 Correct     0 Not recommended
    Main rule for best antenna performance:
    "More the antenna is long, better are the performances."
    Please consult your dealer for advice.

    Options


    LIBERTY-MIC (WIRELESS MICROPHONE)
    (TXMU000)

    MINI MICRO MAINS-LIBRES
    (ACDC200)

    Micro DNC-520
    (ACFD521)

    Micro DNC-520 UP/DOWN
    (ACFD520)

    Description

    Technical characteristics

    - General
    Channels:40
    Modulation modes:AM / FM / LSB / USB
    Frequency ranges:from 26.965 MHz to 27.405 MHz
    Antenna impedance:50 ohms
    Power supply:13.2 V
    Dimensions H x W x D (in mm):56 x 185 x 264.5
    Weight:1.5 kg
    Accessories supplied:power cord with fuse
    1 microphone and its hanger
    1 mounting bracket with fixing screws
    - Transmission
    Frequency allowance:+/- 300 Hz
    Carrier power:1 W AM / 4 W FM / 4 W USB-LSB (PEP)
    Transmission interference:inferior to 4 nW (- 54 dBm)
    Audio response:300 Hz to 3 kHz in AM/FM/USB/LSB
    Emitted power in the adj. channel:inferior to 20 µW
    Microphone sensitivity:3 mV
    Drain:3 A (with modulation)
    Modulated signal distortion:2 %
    - Reception
    Maxi. sensitivity at 20 dB sinad: 0,7 μV -110 dBm (AM)
    0,35 μV -116 dBm (FM)
    0,28 μV -118 dBm (USB/LSB)
    Frequency response:300 Hz to 3 kHz in AM/FM
    Adjacent channel selectivity:60 dB
    Maximum audio power:3 W
    Squelch sensitivity:mini 0.2 μV - 120 dBm
    maxi 1 mV - 47 dBm
    Frequency image rejection rate:60 dB
    Intermediate frequency rej. rate:70 dB
    Drain:400 mA nominal / 1000 mA max
