The CB Radios / The AM/FM transceivers / RANDY II M
0 vote - 0 comment -
Multi-normes européennes An optimal and reliable performance of your president  cb radio will be reached only if the device is used with a real president antenna. Upon presentation of the original invoice of the antenna you will be given 3 additional years warranty on the cb radio (2+3), that is 5 year warranty. RoHS - What is it?

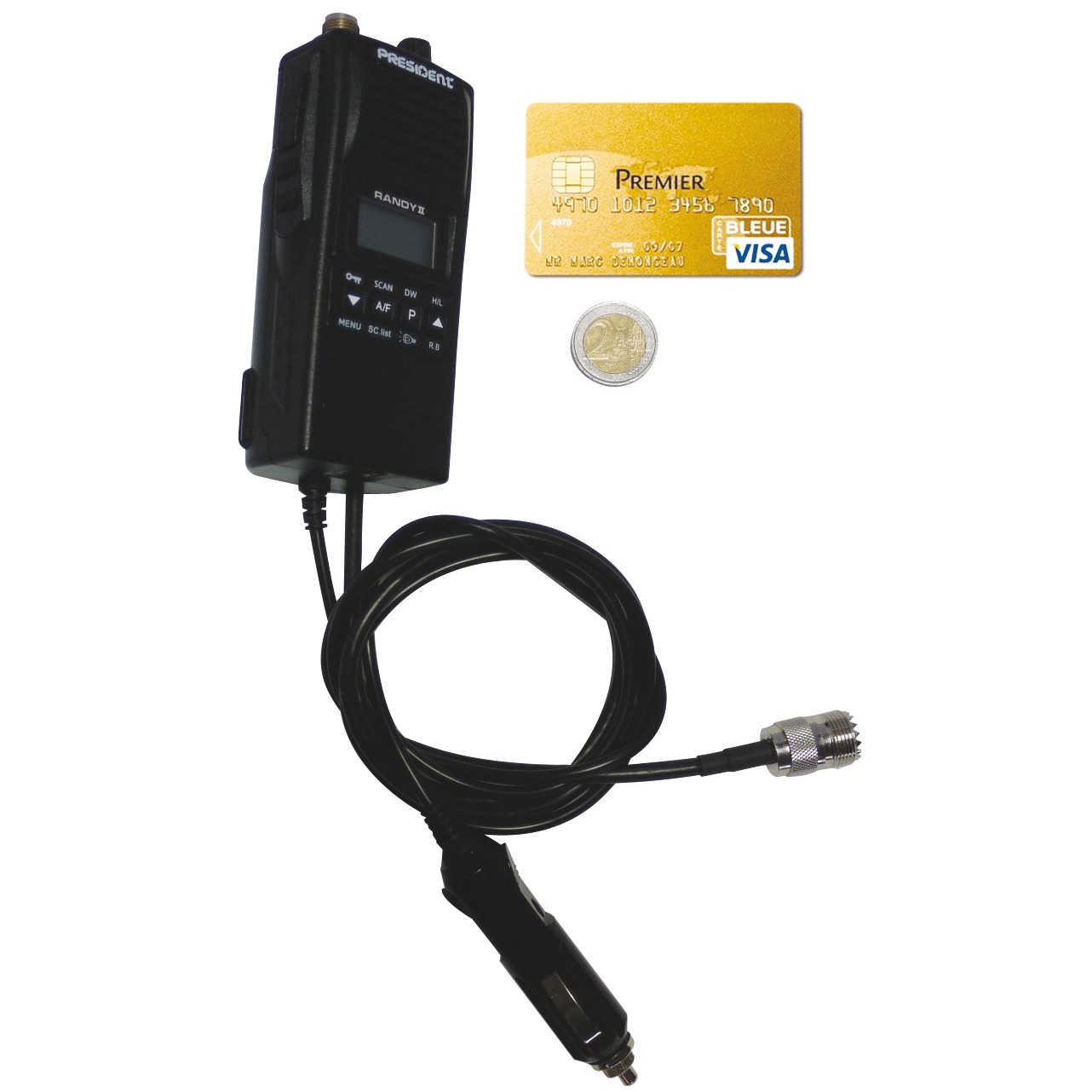

RANDY II M
- 40 channels AM / FM
- Up/down channel selector
- Volume adjustment and ON/OFF
- Squelch automatic (ASCP)
- Multi-functions LCD display
- Frequencies display
- S-meter
- ANL filter
- Scan
- F function key
- Beep Function
- Roger Beep
- Mode switch AM / FM
- Dual watch
- Key locking
- Preset 19
- External microphone plug
- External loudspeaker jack
Back light color:

Dimensions H x W x D (in mm) : 120 x 54 x 35
Weight (with accessories): 0.32 kg
Included accessories :

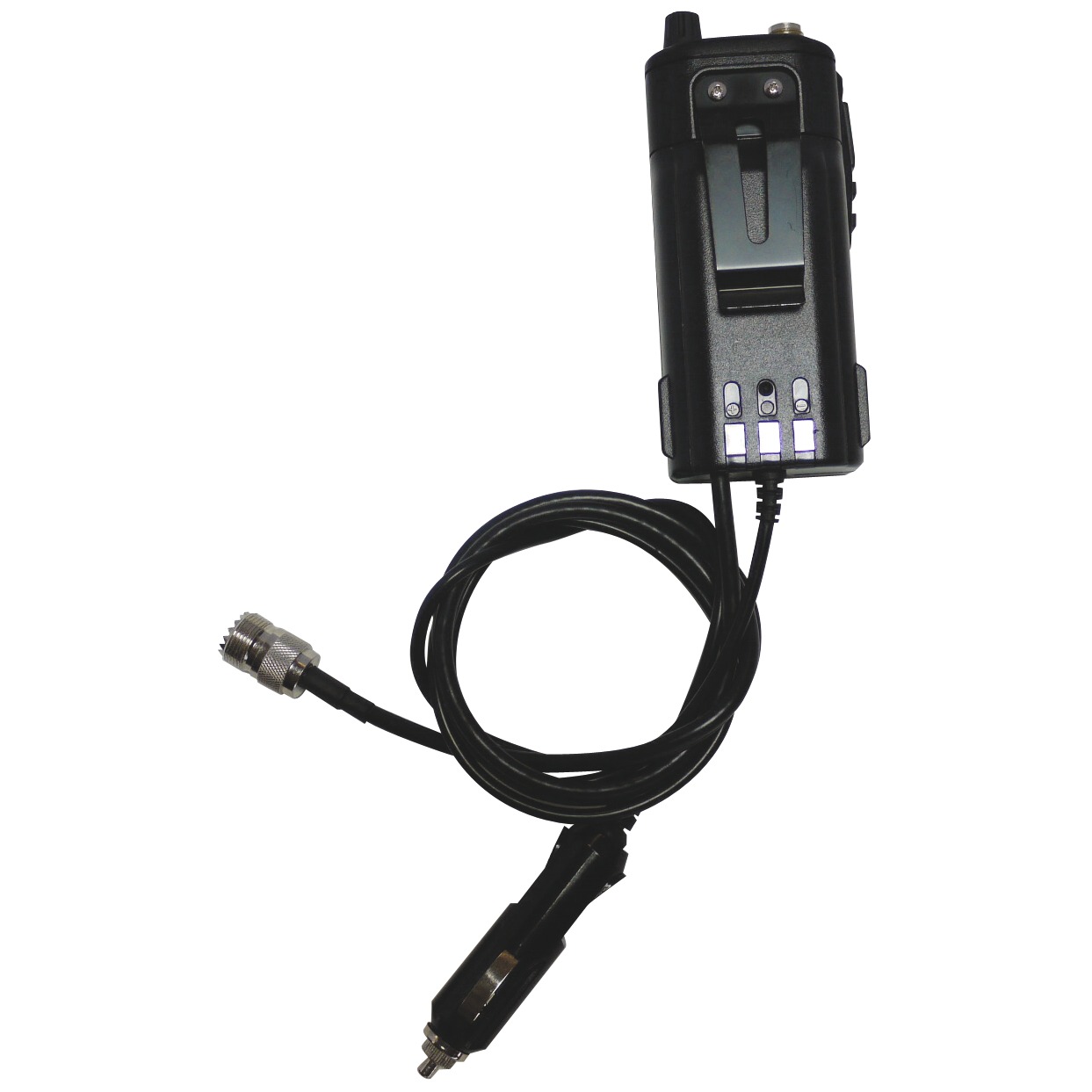

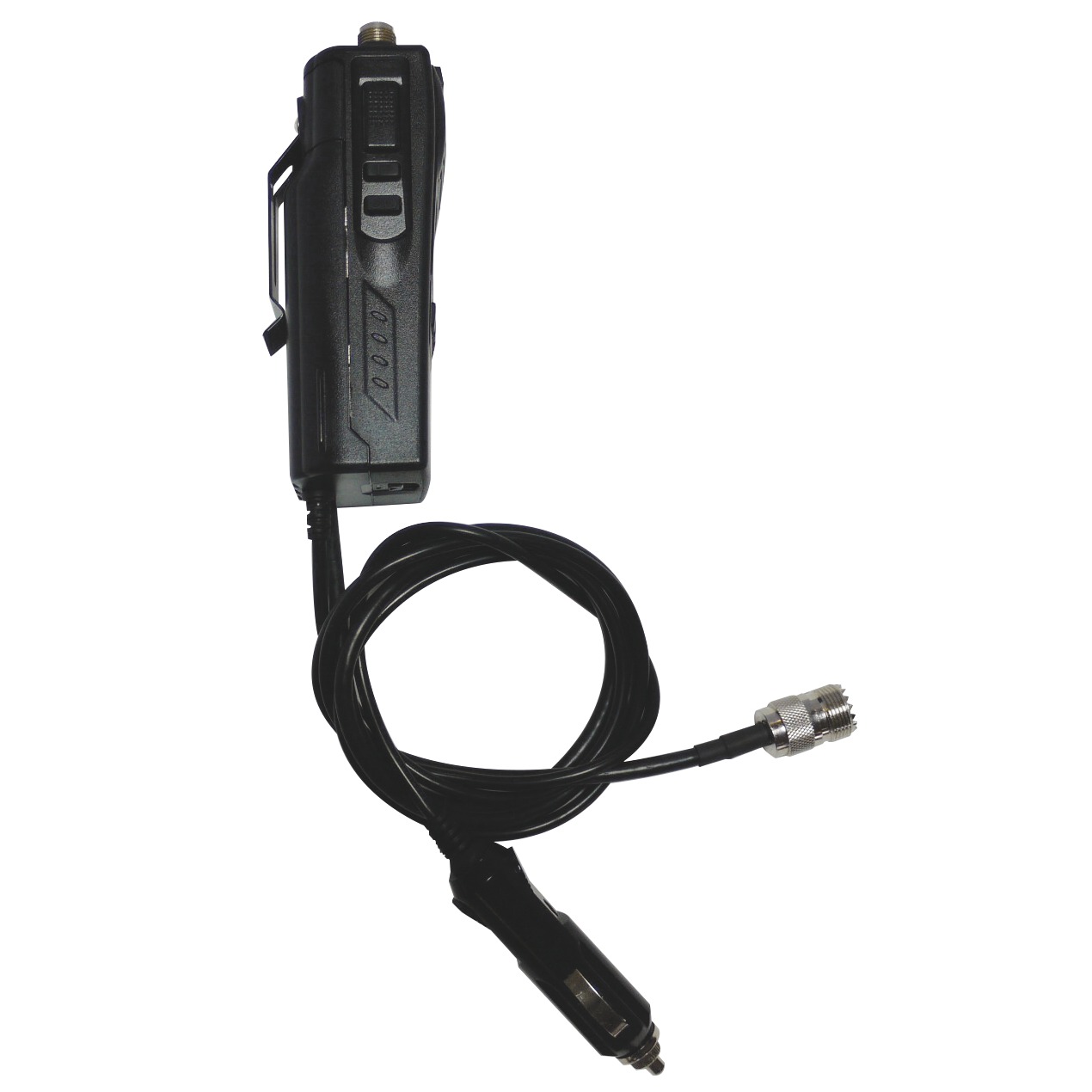

  • Adapter with CB antenna connector and cigarette lighter plug
  •

    Antennas recommended for this transceiver

    ALABAMA
    ALASKA
    ARAVALI
    COLORADO 1800 Power
    DAKOTA
    DAKOTA UP
    GAMMA 90
    HAWAI
    HIMALAYA
    HIMALAYA WB
    IOWA
    KENTUCKY
    MARYLAND
    MICHIGAN A
    MISSISSIPPI
    MISSOURI
    MISSOURI UP
    ML-145
    ML-145 UP
    MONTANA
    MONTANA UP
    MS-145 CN
    OHIO
    OREGON
    SUPER FLORIDA
    TEXAS 1800 Power
    WA-27
    WASHINGTON
    WYOMING UP
    CAROLINA
    FLORIDA
    FLORIDA UP
    GEORGIA
    INDIANA
    NEW YORK
    VERMONT
    VIRGINIA
    3 Excellent     2 Very good      1 Correct     0 Not recommended
    Main rule for best antenna performance:
    "More the antenna is long, better are the performances."
    Please consult your dealer for advice.

    Options


    Rubber antenna (30 cm)
    (ACMS301)

    Battery Lithium-Ion (2100 mAh - 7.4 v)
    (ACMS302)

    Wall charger (110 220v)
    (ACMS303)

    adapter with CB antenna and cigarette lighter plug
    (ACMS304)

    Microphone Randy II
    (ACMS305)

    Description

    Display key EMG ROGER SC AMFM RX M H L BATT CHANNEL INDICATOR

    Technical characteristics

    - General
    Channels:40
    Modulation modes:AM / FM
    Frequency ranges:from 26.965 MHz to 27.405 MHz
    Antenna impedance:50 ohms
    Power supply:13.2 V
    Dimensions H x W x D (in mm):120 x 54 x 35
    Weight:0.32 kg (with accessories)
    Accessories supplied:Adapter with CB antenna connector and cigarette lighter plug
    - Transmission
    Frequency allowance:+/- 200 Hz
    Carrier power:1~3 W AM / 1~4 W FM
    Transmission interference:inferior to 4 nW (- 54 dBm)
    Audio response:300 Hz to 2.5 kHz
    Emitted power in the adj. channel:inferior to 20 µW
    Microphone sensitivity:7 mV
    Drain:1.8 A (with modulation)
    Modulated signal distortion:2 %
    - Reception
    Maxi. sensitivity at 20 dB sinad: 0,5 μV -113 dBm (AM)
    0,3 μV -116 dBm (FM)
    Frequency response:300 Hz to 2.5 kHz
    Adjacent channel selectivity:60 dB
    Maximum audio power:1 W
    Squelch sensitivity:mini 0.2 μV - 120 dBm
    maxi 1 mV - 47 dBm

    Photos


    3604px x 3604px
    1.4 MB

    3770px x 3770px
    1.13 MB

    1243px x 1243px
    87.26 KB

    1270px x 1270px
    81.05 KB

    1282px x 1282px
    106.57 KB

    3436px x 3436px
    1.29 MB

    3421px x 3421px
    665.47 KB

    User manual

    Select your language:

    version S/N < 0x13xxxxx
    EN(pdf - 321.66 KB)

    version S/N = 0x13xxxxx
    EN(pdf - 837.9 KB)
    ES(pdf - 743.56 KB)
    FR(pdf - 743.56 KB)
    PL(pdf - 837.9 KB)

    Certificate of Conformity

    Select your language:

    version S/N < 0x13xxxxx
    EN(pdf - 370.66 KB)

    version S/N = 0x13xxxxx
    EN(pdf - 83.98 KB)
    ES(pdf - 54.82 KB)
    FR(pdf - 63.3 KB)
    PL(pdf - 120.21 KB)
