An optimal and reliable performance of your president cb radio will be reached only if the device is used with a real president antenna. Upon presentation of the original invoice of the antenna you will be given 3 additional years warranty on the cb radio (2+3), that is 5 year warranty.

LINCOLN II +

- Rotary switch and Up/down channel selector
- VFO Mode
(continuous scanning of 24.880 Mhz to 24.980 Mhz and of 28.000 Mhz to 29.700 Mhz)
- Volume adjustment and ON/OFF
- RF Power
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Public Address
- Vox function (Hands free)
- ANL filter , NB and HI-CUT
- RF Gain / Mike gain
- Clarifier
- Channels and memories scan
- 6 Memories
- CTCSS (38 tones)
- DCS (104 codes)
- Dim
- MENU fonction key
- Beep Function
- Roger Beep
- Mode switch AM/FM/LSB/USB/CW
- Dual watch
- Key locking
- SWR (Power Reading /SWR)
- Preset d'urgence
- TOT (Time Out Timer) adjustable
- Front microphone plug
- External loudspeaker jack

Back light color:

Dimensions H x W x D (in mm) : 52 x 170 x 250
Weight : 1.4 kg

Included accessories :

power cord with fuse

1 microphone and its hanger

1 mounting bracket with fixing screws

Antennas recommended for this transceiver

(see the complete table)

ALABAMA

INDIANA

CAROLINA

Excellent

Very good

Correct

Not recommended

Main rule for best antenna performance:
"More the antenna is long, better are the performances."
Please consult your dealer for advice.

Bands	:	10 + 12
Modulation modes	:	AM/FM/LSB/USB/CW
Frequency ranges	:	from 28.000 MHz to 29.700 MHz / from 24.880 Mhz to 24.980 Mhz
CTCSS	:	38 tones
DCS	:	104 codes
Antenna impedance	:	50 ohms
Power supply	:	13.2 V
Dimensions H x W x D (in mm)	:	52 x 170 x 250
Weight	:	1.4 kg
Accessories supplied	:	power cord with fuse 1 microphone and its hanger 1 mounting bracket with fixing screws

- Transmission

Frequency allowance	:	+/- 300 Hz
Carrier power	:	12 W AM / 35 W FM / 35 W USB-LSB / 12 W CW
Transmission interference	:	inferior to - 50 dBc
Audio response	:	300 Hz to 3 kHz
Emitted power in the adj. channel	:	inferior to 20 µW
Microphone sensitivity	:	3 mV
Drain	:	6 A (with modulation)
Modulated signal distortion	:	2 %

- Reception

Maxi. sensitivity at 20 dB sinad	:	0,7 μV -110 dBm (AM) 0,35 μV -116 dBm (FM) 0.28µV-118 dBm (USB/LSB/CW)
Frequency response	:	300 Hz to 3 kHz
Adjacent channel selectivity	:	60 dB
Maximum audio power	:	3 W
Squelch sensitivity	:	mini 0.2 μV - 120 dBm maxi 1 mV - 47 dBm
Frequency image rejection rate	:	60 dB
Intermediate frequency rej. rate	:	70 dB
Drain	:	400 mA nominal, 600 mA max

- CTCSS Tone List

No.	Freq. (Hz)	No.	Freq. (Hz)	No.	Freq. (Hz)
00 - oF	OFF	13	103,5	26	162,2
1	67,0	14	107,2	27	167,9
2	71,9	15	110,9	28	173,8
3	74,4	16	114,8	29	179,9
4	77,0	17	118,8	30	186,2
5	79,7	18	123,0	31	192,8
6	82,5	19	127,3	32	203,5
7	85,4	20	131,8	33	210,7
8	88,5	21	136,5	34	218,1
9	91,5	22	141,3	35	225,7
10	94,8	23	146,2	36	233,6
11	97,4	24	151,4	37	241,8
12	100,0	25	156,7	38	250,3

- DCS Code List

Code No.	DCS (Octal)	Code No.	DCS (Octal)	Code No.	DCS (Octal)
1	23	36	223	71	445
2	25	37	225	72	446
3	26	38	226	73	452
4	31	39	243	74	454
5	32	40	244	75	455
6	36	41	245	76	462
7	43	42	246	77	464
8	47	43	251	78	465
9	51	44	252	79	466
10	53	45	255	80	503
11	54	46	261	81	506
12	65	47	263	82	516
13	71	48	265	83	523
14	72	49	266	84	526
15	73	50	271	85	532
16	74	51	274	86	546
17	114	52	306	87	565
18	115	53	311	88	606
19	116	54	315	89	612
20	122	55	325	90	624
21	125	56	331	91	627
22	131	57	332	92	631
23	132	58	343	93	632
24	134	59	346	94	654
25	143	60	351	95	662
26	145	61	356	96	664
27	152	62	364	97	703
28	155	63	365	98	712
29	156	64	371	99	723
30	162	65	411	100	731
31	165	66	412	101	732
32	172	67	413	102	734
33	174	68	423	103	743
34	205	69	431	104	754
35	212	70	432

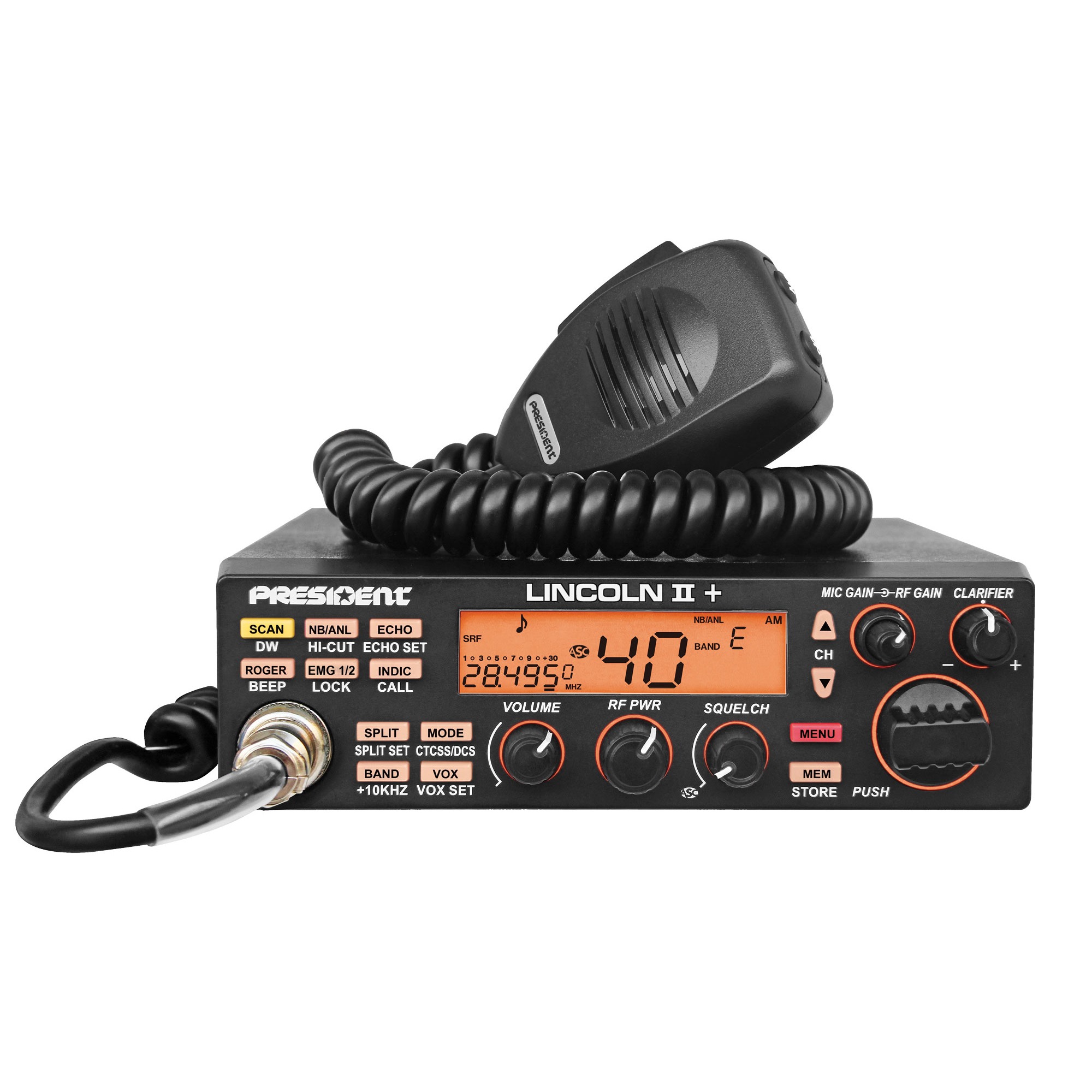

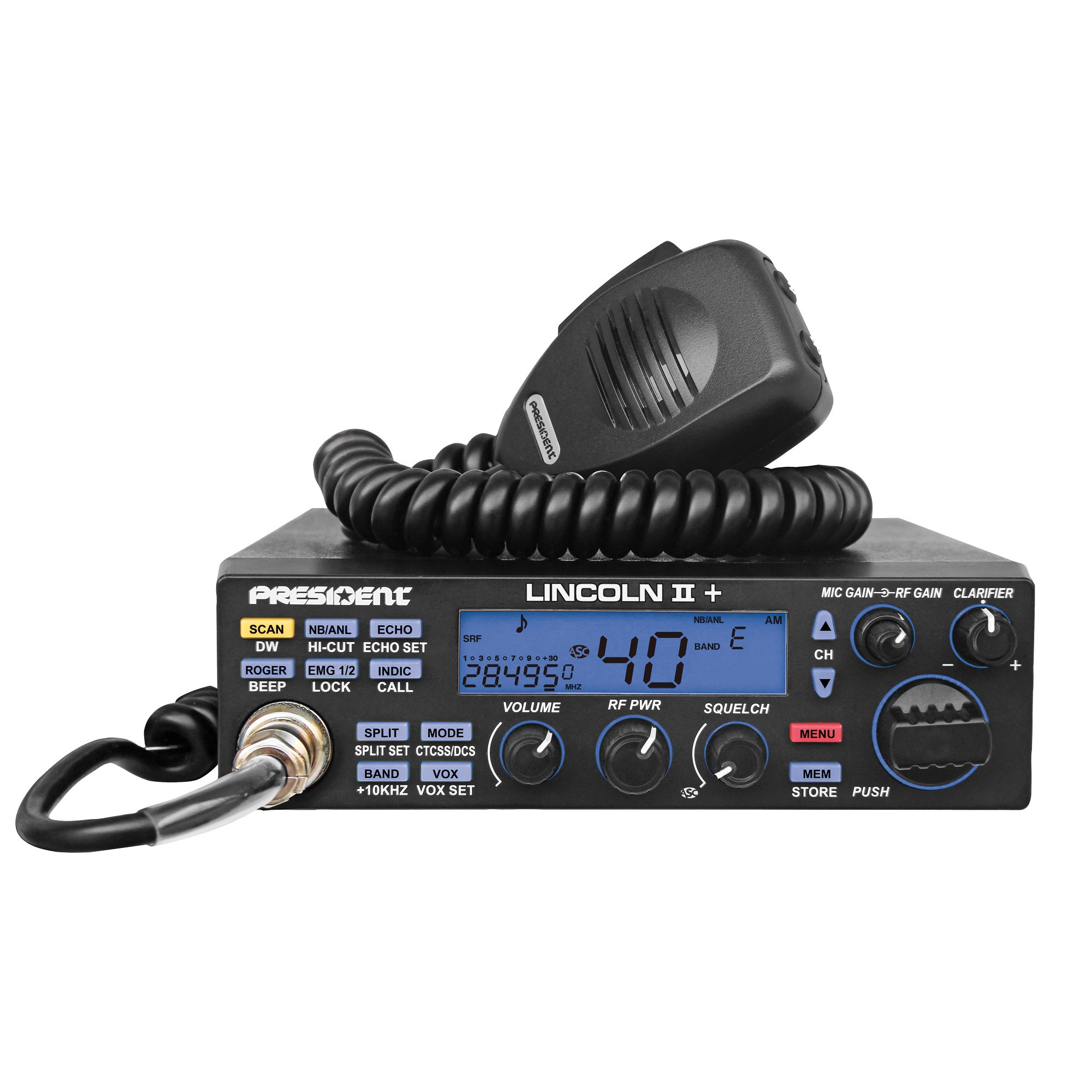

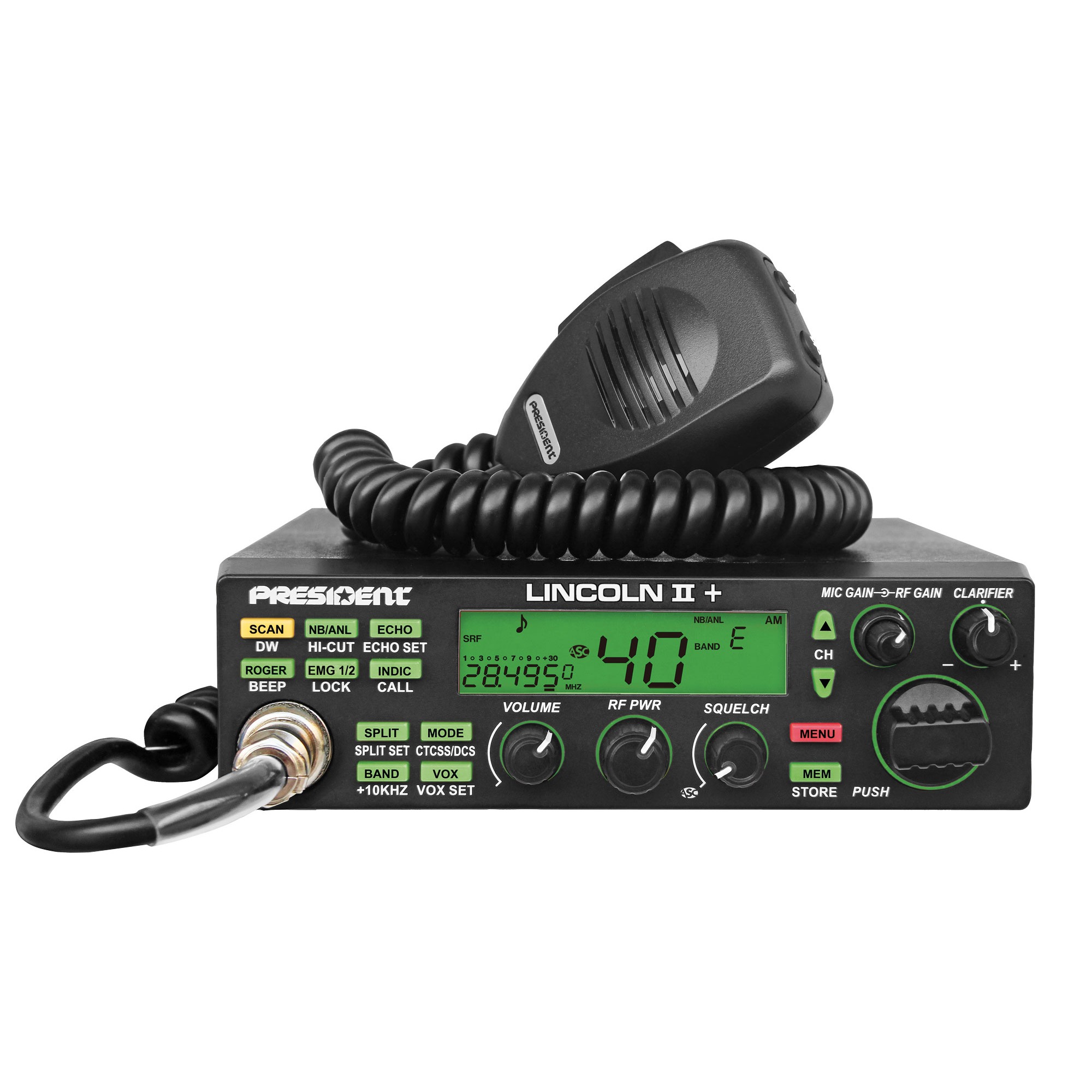

Photos
