The CB Radios / The FM transceivers / BARRY FM ASC 12/24V
0 vote - 0 comment -
Multi-normes européennes An optimal and reliable performance of your president  cb radio will be reached only if the device is used with a real president antenna. Upon presentation of the original invoice of the antenna you will be given 3 additional years warranty on the cb radio (2+3), that is 5 year warranty. ASC RoHS - What is it?
Compatible LIBERTY-MIC
BARRY FM ASC 12/24V
- 40 channels FM + FM UK
- 12 / 24 V
- Up/down channel selector
- Volume adjustment and ON/OFF
- Manual squelch and ASC
- Multi-functions LCD display
- S-meter
- Public Address
- ANL filter
- F function key
- Beep Function
- Roger Beep
- Mode switch FM + FM UK
- Preset programmable
- TOT (Time out timer)
- Front microphone plug
- External loudspeaker jack
Back light color:

Dimensions H x W x D (in mm) : 45 x 125 x 175
Weight : 0.9 kg
Included accessories :
  • 1 microphone Electret and its hanger
  • 1 mounting bracket with fixing screws
  •

    Description

    Technical characteristics

    - General
    Channels:40
    Modulation modes:FM + FM UK
    Frequency ranges:from 26.965 MHz to 27.405 MHz
    Antenna impedance:50 ohms
    Power supply:13.2 V
    Dimensions H x W x D (in mm):45 x 125 x 175
    Weight:0.9 kg
    Accessories supplied:1 microphone Electret and its hanger
    1 mounting bracket with fixing screws
    - Transmission
    Frequency allowance:+/- 200 Hz
    Carrier power:4 W FM
    Transmission interference:inferior to 4 nW (- 54 dBm)
    Audio response:300 Hz to 3 kHz
    Emitted power in the adj. channel:inferior to 20 µW
    Microphone sensitivity:7 mV
    Drain:1.7 A (with modulation)
    Modulated signal distortion:2 %
    - Reception
    Maxi. sensitivity at 20 dB sinad: 0,35 µV - 116 dBm FM
    Frequency response:300 Hz to 3 kHz
    Adjacent channel selectivity:60 dB
    Maximum audio power:3 W
    Squelch sensitivity:mini 0.2 μV - 120 dBm
    maxi 1 mV - 47 dBm
    Frequency image rejection rate:60 dB
    Intermediate frequency rej. rate:70 dB
    Drain:180 ~ 500 mA (13,2 V) 100 ~ 300 mA (26,4 V)

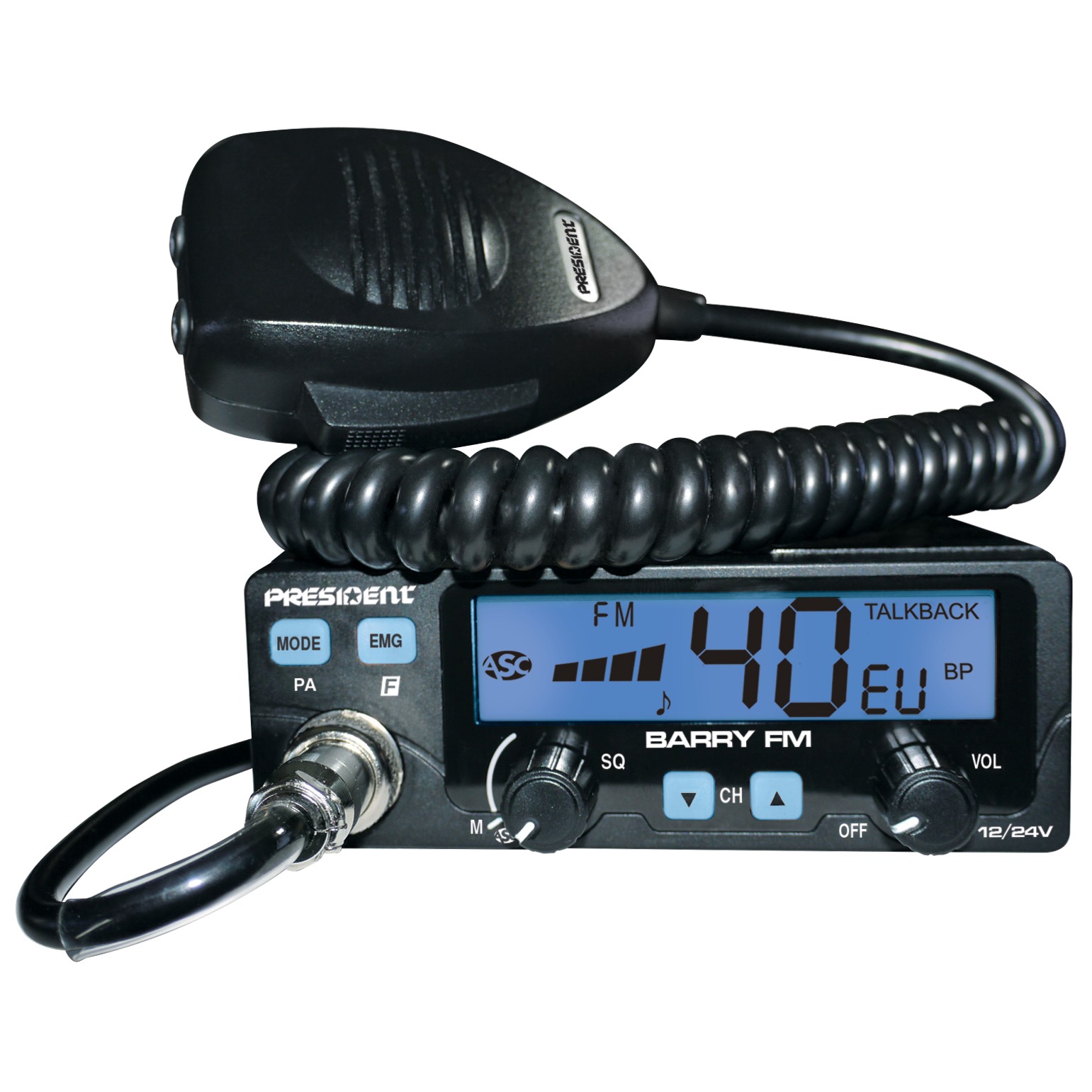

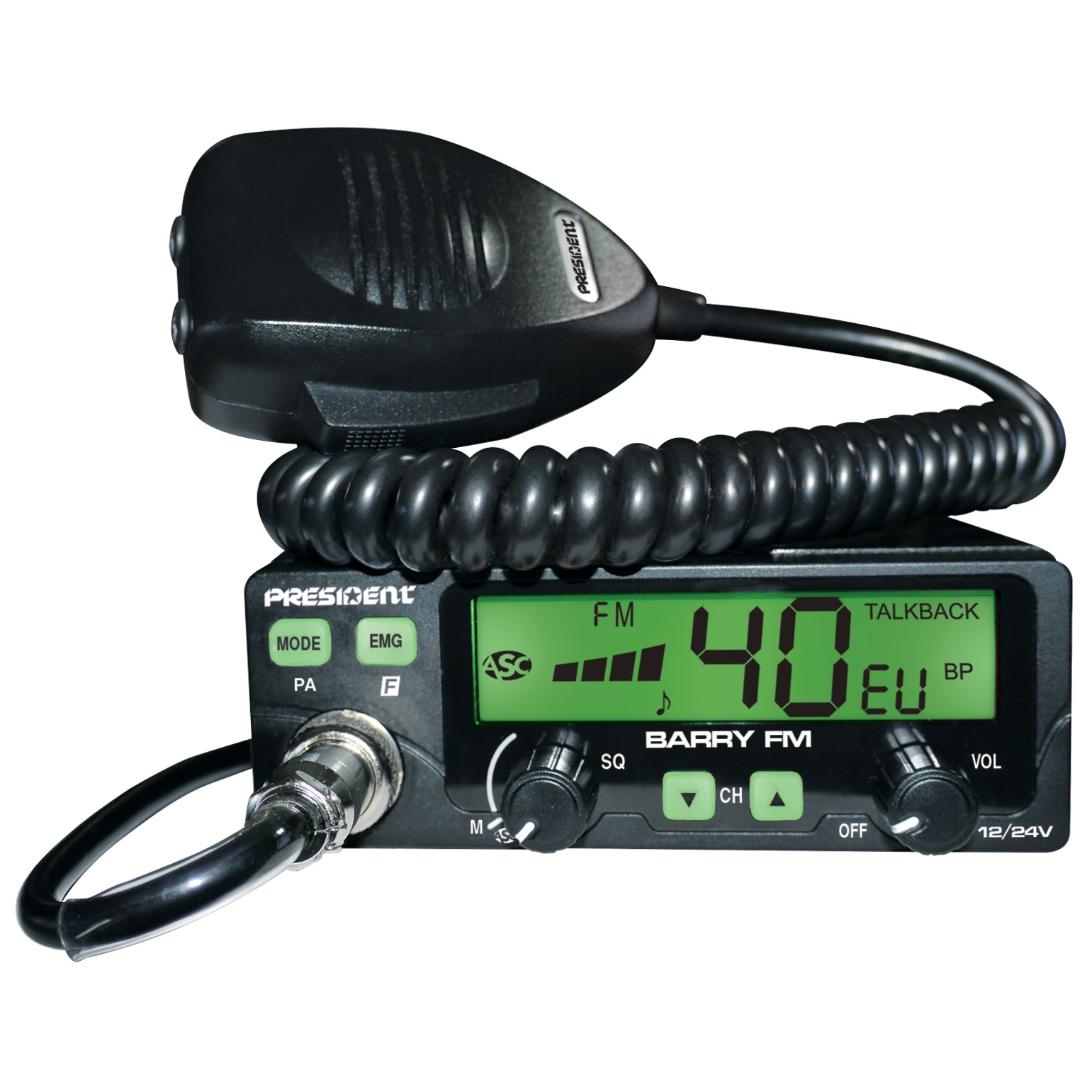

    Photos
